TSC TDP-324W Series Desktop Direct Thermal Wristband Barcode and Label Printers (TDP-225W, TDP-324W)
TDP-324W Series (TDP-225W, TDP-324W)
- High resolution 300 dpi printer, also available in 203 dpi resolutions
- Can use any roll of wristbands from any supplier
- Save up to 50% on cost of wristbands
- Designed to hold 6.5" OD wristbands
- Front LCD display
- High quality double-walled clamshell design
- Easy media loading
- Up to 152.4 mm (6") per second print speed
- microSD Flash memory expansion up to 4 GB
- Ethernet and USB 2.0 connectivity standard
- Optional peel-off module, cutter module and down-time keyboard interface
- Can be programmed to work without a computer attached
- Cerner Certified and works in any hospital system
Overview
The TDP-324W 300 dpi high resolution wristband label printer is custom-designed for patient ID and entertainment ticketing.

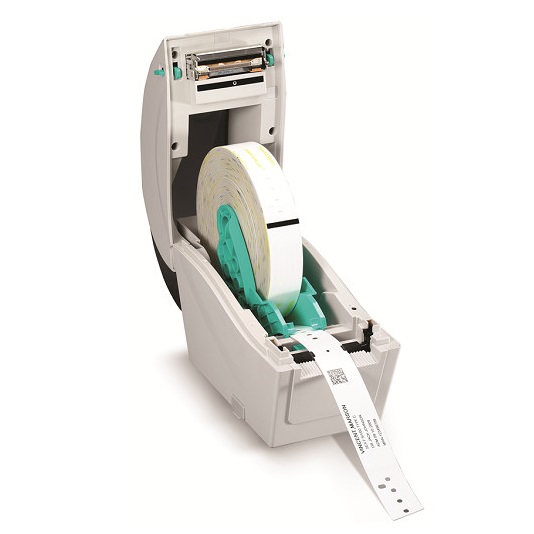

The TDP-324W series works with any available rolls of wristbands on the market, delivering both flexibility and a low cost solution for your wristband printing applications. Unlike other direct thermal printers, the TDP-324W series features a compact design but can still hold a full 6.5-inch OD roll of wristbands. Order wristbands on 6.5 inch rolls, sold by major wristband manufacturers, provides the lowest cost per wristband available.
The printer features a small footprint which can stand on a desk, or be wall-mounted when desk space is at a premium. The printer features an LCD printer-status display and offers USB 2.0 and Ethernet connectivity along with a USB-Host port for use with a keyboard or scanner. The TDP-324W can be optionally configured to print wristbands in the event of a computer failure by retrieving its stored wristband printing program and entering and printing patient or customer information from a PC keyboard.
The TDP-324W series also includes the TDP-225W wristband printer with 203 dpi resolution. The TDP-225W includes the same features as the TDP-324W and is perfect for applications that do not require high resolution graphics or barcodes.
The TDP-324W 300 dpi high resolution wristband label printer is custom-designed for patient ID and entertainment ticketing.
The TDP-324W series works with any available rolls of wristbands on the market, delivering both flexibility and a low cost solution for your wristband printing applications. Unlike other direct thermal printers, the TDP-324W series features a compact design but can still hold a full 6.5-inch OD roll of wristbands. Order wristbands on 6.5 inch rolls, sold by major wristband manufacturers, provides the lowest cost per wristband available.
The printer features a small footprint which can stand on a desk, or be wall-mounted when desk space is at a premium. The printer features an LCD printer-status display and offers USB 2.0 and Ethernet connectivity along with a USB-Host port for use with a keyboard or scanner. The TDP-324W can be optionally configured to print wristbands in the event of a computer failure by retrieving its stored wristband printing program and entering and printing patient or customer information from a PC keyboard.
The TDP-324W series also includes the TDP-225W wristband printer with 203 dpi resolution. The TDP-225W includes the same features as the TDP-324W and is perfect for applications that do not require high resolution graphics or barcodes.
- Healthcare
- Patient ID tracking
- Hospital admissions
- Hospital nursery
- Entertainment & Hospitality
- Amusement parks
- Water parks
- Event admissions
- Night club age verification
- Government & Emergency
- Law enforcement
- Medical Emergency Triage
- Crowd control
- Animal ID
- Restricted area access
| Model | TDP-225W | TDP-324W | |
| Product Photos |  |
|
|
| Print Specification | Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) |
| Max. print speed | 152.4 mm (6")/second | 102 mm (4")/second | |
| Max. print width | 52 mm (2.05") | 48 mm (1.89") | |
| Max. print length | 2,286 mm (90") | 1,016 mm (40") | |
| Printing method | Direct Thermal | Direct Thermal | |
| LCD/LED | LCD/LED | 1 LED (3 colors: green, amber & red) | 1 LED (3 colors: green, amber & red) |
| Memory | SDRAM | 8 MB | 8 MB |
| Flash | 4 MB | 4 MB | |
| Extension | microSD card reader for Flash memory expansion, up to 4 GB | microSD card reader for Flash memory expansion, up to 4 GB | |
| Ribbon & Media Capacity | Ribbon capacity | N/A | N/A |
| Ribbon width | N/A | N/A | |
| Media type | Continuous, die-cut, black mark, fan-fold, notched, wristband (outside wound) | Continuous, die-cut, black mark, fan-fold, notched, wristband (outside wound) | |
| Media width | 15 ~ 52 mm (0.59" ~ 2.05") | 15 ~ 52 mm (0.59" ~ 2.05") | |
| Media thickness | 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) | 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) | |
| Media core diameter | 25.4 mm (1") | 25.4 mm (1") | |
| Media length | 10 ~ 2,286 mm (0.39" ~ 90") | 10 ~ 1,016 mm (0.39" ~ 40") | |
| Media roll capacity | 165 mm (6.5") OD | 165 mm (6.5") OD | |
| Interface | Standard | USB 2.0 Internal Ethernet, 10/100 Mbps |
USB 2.0 Internal Ethernet, 10/100 Mbps |
| Options | USB host, for scanner or PC keyboard (factory option) | USB host, for scanner or PC keyboard (factory option) | |
| Software Support | Software support | SAP, Oracle, Cerner, WHQL 8.1, Windows, Linux, MAC X.10, Mircosoft SQL Server, Bartender, Nice Label | SAP, Oracle, Cerner, WHQL 8.1, Windows, Linux, MAC X.10, Mircosoft SQL Server, Bartender, Nice Label |
| Physical characteristics | Dimension | 109 mm (W) x 210 mm (H) x 260 mm (D) 4.29" (W) x 8.27" (H) x 10.24" (D) |
109 mm (W) x 210 mm (H) x 260 mm (D) 4.29" (W) x 8.27" (H) x 10.24" (D) |
| Weight | 1.2 kg (2.65 lbs) | 1.2 kg (2.65 lbs) |
