Sefelec 56-H Dielectric Strength Tester (Hipot Tester)

Sefelec 56-H Dielectric Strength Tester (Hipot Tester)
SEFELEC 56-H
The EATON Dielectric Strength Tester
Hipot Tester

The SEFELEC 56-H is a new generation EATON dielectric strength tester (hipot tester) based and controlled by ARM-Dual Core and DSP technologies providing the best stability and repeatability. The high accuracy and measurement speed are suitable for quality control or incoming inspection departments. The sequence mode makes the SEFELEC 56-H easier to use and integrate in a control or a test-bench. The new SEFELEC Series HMI, with its 7” dual-touch TFT screen, offers simple and intuitive operations.

SEFELEC 56-H features and benefits:

Dielectric withstand at 5kVAC 50VA and 6kVDC

Detection modes with Min/Max current thresholds or flashover detection (ΔI)

Burning function without current detection

Programmables test ramps
Rise, dwell, fall
Multi-ramp mode, up to 7 steps

7” TFT Multi touchscreen 16 million colors for programming, tests and results display

ARM-Dual core control & Nand 3D technologies inside for more accuracy, stability and repeatability

DSPs speeds up measurements and production tests

Large internal memory for configurations and test results storage

IEC 61010-2-034 full compliance, specific safety standard for insulation and dielectric strength meters

• Native Ethernet / RS232 / USB / PLC / 0-10 V / CAN IEEE488-2 interface in option
• IEEE488-2 Interface as on option
• CAN Bus CAN to drive extension modules (Scanners)
• SIL2 double safety loop
• Automatic measurement range selection
• Sequence mode to combine several successive tests

SEFELEC 56-H : Dielectric Withstand Tester - General Overview

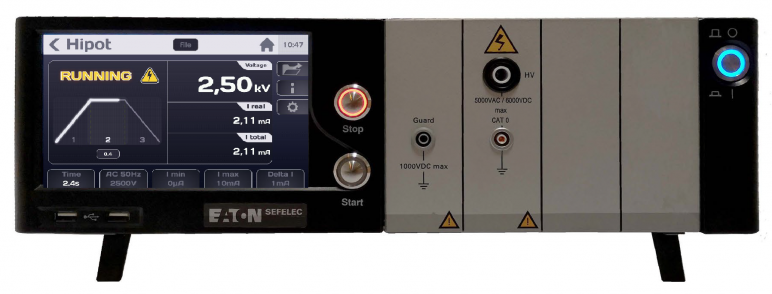

FRONT PANEL
Sefelec 56-H Dielectric Strength Tester (Hipot Tester)

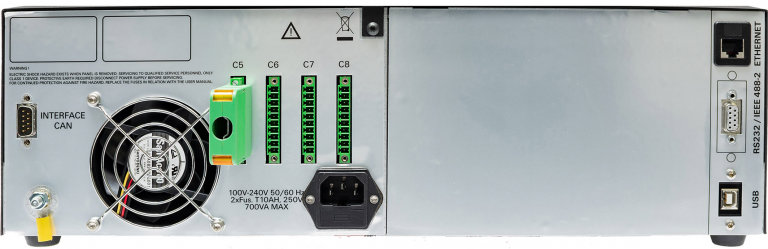

REAR PANEL
   Sefelec 56-H Dielectric Strength Tester (Hipot Tester)

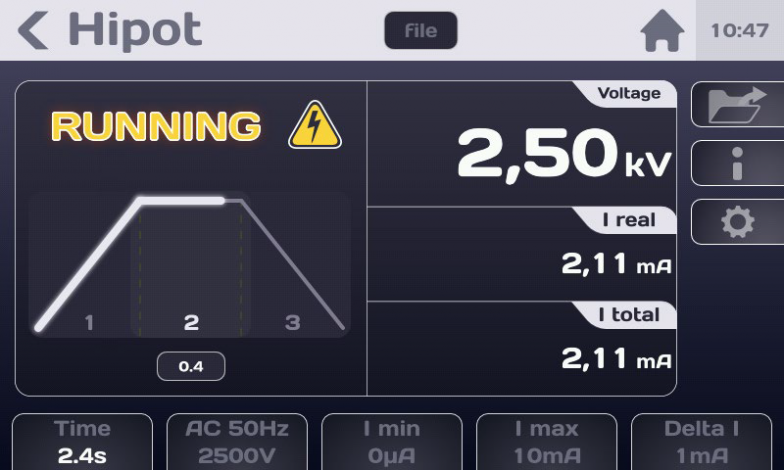

SEFELEC 56-H : Touchscreen Overview

Sefelec 56-H Dielectric Strength Tester (Hipot Tester)

- Passed test
- Failed test
- Permanent measurement mode
- Manual mode
- Multi-steps mode
- Measurement mode selection
- Communication configuration
- Measurement parameters configuration
- Sequence mode

SEFELEC 56-H TECHNICAL SPECIFICATIONS

Output Withstand Voltage
Signal: 50 Hz or 60 Hz sinus
Range: 100 V to 5 000 V AC / 100 V to 6 000 V DC

Short-Circuit Current
at 5 000V AC: < 20 mA
at 6 000V DC: < 20 mA

Ramp mode
PERMANENT mode: The rise time duration set is active. The output voltage rises to the set point. Test stops if there is a fault or if pressing the red button on the front panel.
MANUAL mode: No rise time is set. Manual control pressing up and down arrows on the touch-screen. Test stops if there is a fault or if pressing the red button on the front panel.
AUTO mode: Test runs in 3 sequences : linear raise up to set voltage (Ramp Up), set output voltage remains applied (Dwell), progressive descent to 0V (Fall)


Please contact us for more information.
