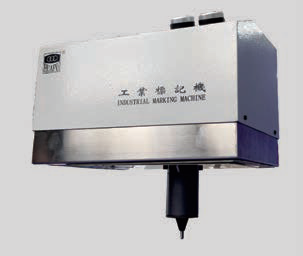

Huapu DBP1-J Integrated Dot Peen Marking Machine

Qualified
- Hard alloy marking pin;
- Marking part hardness up to HRC60;
- Anti-interference and radiation resistance;
- Adapt to harsh work environment.

Robust and reliability
- Adopted reliable linear guide structure;
- Long service life, great cost-effective;
- Low failure rate, convenient maintenance.

Dot peen marking technology
- Validated technology;
- High speed, continuous and uninterrupted marking;
- Equipped with Pneumatic or electromagnetic stylusassembly (according to customer requirements).

Excellent performance
- High precision orientation;
- All types of content marking;
- Marking dot clear and even;
- Marking deep: 0.2~0.3 mm (according to the material)

Easy operation
- Compact and small;
- Multi data interface transmission;
- Compatible with various graphicformats (AutoCAD, CorelDraw etc.)
- Flexible software, support customization.

Marking Performance

Mechanical spec
DBP1-J520
Marking window: 50x20mm
Size：222x130x86mm
Weight：3kg
Machine/controller cable length：5m (10m optional)
Compressed air supply (when in Pneumatic option)：0.3~0.5 mpa

DBP1-J840
Marking window: 80x40mm
Size：220x174x162mm
Weight：6.7kg
Machine/controller cable length：5m (10m optional)
Compressed air supply (when in Pneumatic option)：0.3~0.5 mpa

DBP1-J1180
Marking window: 110x80mm
Size：256x268x195mm
Weight：8kg
Machine/controller cable length：5m (10m optional)
Compressed air supply (when in Pneumatic option)：0.3~0.5 mpa

Please contact us for more information.
