TSC TTP-286MT Series Industrial Thermal Transfer Barcode and Label Printers
TTP-286MT Series (TTP-286MT, TTP-384MT)
4.3" touch LCD display with 6-button menus
Ethernet, USB 2.0, serial, parallel and USB Host*1 connectivity are standard.
Die-cast chassis, sheet metal structure with clear media view window
Can manage label widths up to 241.3 mm (9.5") with a maximum print width up to 219.5 mm (8.64") wide at 300 dpi high resolution
600 meter ribbon supply
512 MB Flash and 256 MB SDRAM memory
SD Flash memory expansion up to 32 GB
Up to 6" per sec. print speed for 203 dpi, and 4" per sec. print speed for 300 dpi
Powerful basic programming tools
Options include: GPIO connectivity, Bluetooth module, and cutter module
Overview
The affordable and easy-to-use TTP-286MT Series wide-format thermal transfer printer is ideally suited for compliance labeling, brand marketing, inventory control, drum labeling, warning signs and a host of other signage solutions. The TTP-286MT Series features two models to meet your wide format labeling needs:
- TTP-286MT 203 dpi resolution, 8.5" print width, 152 mm (6")/second print speed.
- TTP-384MT 300 dpi resolution, 8.64" print width, 102 mm (4")/second print speed.
- TTP-286MT Series can accommodate label widths up to 9.5 inches, with a maximum print width up to 8.64 inches at 300 dpi resolution and 8.5 inches at 203 dpi resolution. It also is designed to print wide-lateral bar codes without the need for image rotation.
Enhanced High Speed Performance, Color Touch Display
TTP-286MT Series features a new faster processor, and all the memory customers will need to print high quality labels at the fastest speeds.
High Speed Performance, More memory
The TTP-286MT Series features increased memory of 512 MB Flash and 256 MB SDRAM. Internal Ethernet, USB 2.0, USB host, parallel and serial interfaces come standard.
A Colorful Choice
The new TTP-286MT Series comes with a high-contrast 4.3" color touch LCD panel with 6 button control user friendly design for simple printer set up and job status.
Loaded with Standard Features
The TTP-286MT Series features a rigid, full die-cast aluminum frame designed to last in tough environments and supports a large 8.2 inch outer diameter label roll and up to 600 meter ribbon capacity for high volume printing. The TTP-286MT Series features a center-bias label handling mechanism that makes media loading and adjustment easy.
Because our printers our built to last, we back them with a standard two-year limited warranty.
Powerful TSPL-EZ Printer Programming Language
TTP-286MT Series features the TSPL-EZ printer-control language, a fully compatible set of standard industry emulations, including Line Mode, Eltronฎ and Zebraฎ languages and will work in many IT environments including Oracle, SAP, Unix, AS/400, Windows, Stand Alone, and many more.
- Compliance Labeling for Shipping & Receiving
- Brand Marketing Featuring Graphics, Logos & Texts
- Pallet Labeling
- Inventory Control Labeling
- Warning Labels
- Drum Labeling
- Custom Signage
- Multiple-up Labels (two or three labels across)
| Model | TTP-286MT | TTP-384MT | ||

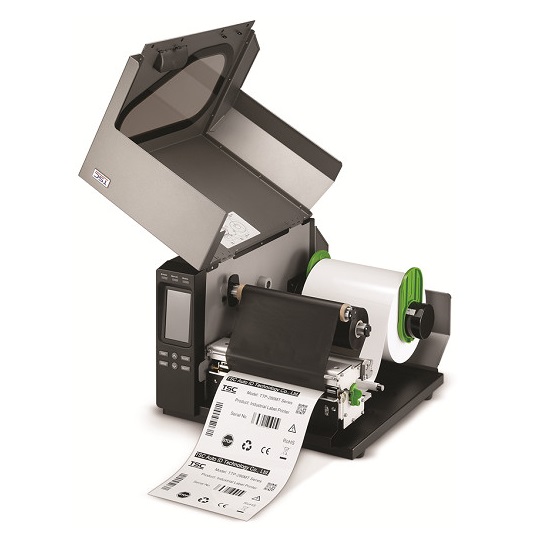

| Product Photos |  |
|
||
| Print Specification | Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) | |
| Max. print speed | 152 mm (6")/second | 102 mm (4")/second | ||
| Max. print width | 216 mm (8.5") | 219.5 mm (8.64") | ||
| Max. print length | 11,430 mm (450") | 5,080 mm (200") | ||
| Printing method | Thermal Transfer & Direct Thermal | Thermal Transfer & Direct Thermal | ||
| LCD/LED | LCD/LED | 16 bits Color, 480 x 272 pixels, with back lights, Resistive Touch Screen | 16 bits Color, 480 x 272 pixels, with back lights, Resistive Touch Screen | |
| Memory | SDRAM | 256 MB | 256 MB | |
| Flash | 512 MB | 512 MB | ||
| Extension | SD Flash memory card reader for Flash memory expansion, up to 32 GB | SD Flash memory card reader for Flash memory expansion, up to 32 GB | ||
| Ribbon & Media Capacity | Ribbon capacity | 600 m long, Max. 90 mm OD, 1" core (ink coated outside) | 600 m long, Max. 90 mm OD, 1" core (ink coated outside) | |
| Ribbon width | 110 mm ~ 254 mm (4.3" ~ 10") | 110 mm ~ 254 mm (4.3" ~ 10") | ||
| Media type | Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound) | Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound) | ||
| Media width | 101.6 ~ 241.3 mm (4" ~ 9.5") | 101.6 ~ 241.3 mm (4" ~ 9.5") | ||
| Media thickness | 0.06 ~ 0.254 mm (2.36 ~ 10 mil) | 0.06 ~ 0.254 mm (2.36 ~ 10 mil) | ||
| Media core diameter | 76.2 mm (3") | 76.2 mm (3") | ||
| Media length | 25.4 ~ 11,430 mm (1" ~ 450") | 25.4 ~ 5,080 mm (1" ~ 200") | ||
| Media roll capacity | 208.3 mm (8.2") OD | 208.3 mm (8.2") OD | ||
| Interface | Standard | USB 2.0 RS-232 Parallel Ethernet, 10/100 Mbps USB Host |
USB 2.0 RS-232 Parallel Ethernet,10/100 Mbps USB Host |
|
| Options | GPIO | GPIO | ||
| Software Support | Software support | Oracle, WHQL 8.1, Windows, Linux, MAC X.10, Microsoft SQL Server, BarTender, Nice Label | Oracle, WHQL 8.1, Windows, Linux, MAC X.11, Microsoft SQL Server, BarTender, Nice Label | |
| Physical characteristics | Dimension | 440 mm (W) x 336 mm (H) x 514 mm (D) 17.32" (W) x 13.23" (H) x 20.24" (D) |
440 mm (W) x 336 mm (H) x 514 mm (D) 17.32" (W) x 13.23" (H) x 20.24" (D) |
|
| Weight | 23.7 kg | 23.7 kg |
