Festo VHEF Series Manually Operated Valves

Laser Marking, Engraving and Etching Services

News

Pushbutton valve
Toggle lever valve
Finger lever valve
Hand lever valve, on the side

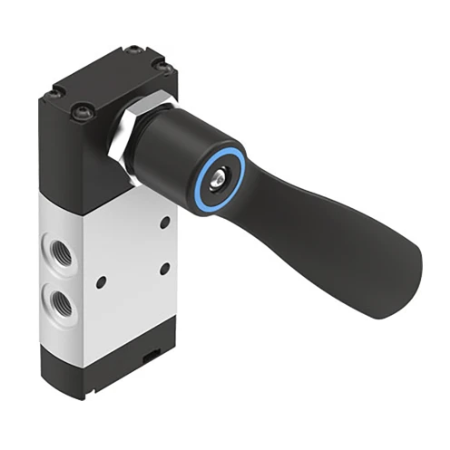

Hand lever valve
Selector valve, on the side

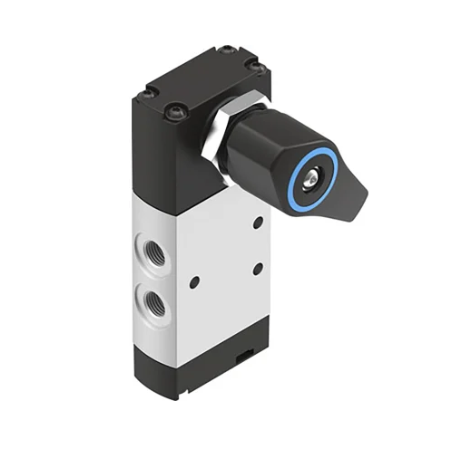

Selector valve

Innovative

Small and compact for a wide range of pneumatic applications
Numerous valve functions can be selected; 3/2-way and 5/2-way functions
With flow rates of up to 1200 l/min, valves VHEF offer outstanding pneumatic performance for a wide range of applications
Low weight
Minimal actuating forces

Versatile

Flexibility of the pneumatic working lines provides a practical solution to different requirements
The 3/2-way valve be used as normally closed (NC) or normally open (NO)
Round silencer or ducted exhaust air
Suitable for vacuum
Reverse operation possible
Pressure range from vacuum to 10 bar possible
Version:

– Pushbutton valve
– Toggle lever valve
– Finger lever valve
– Hand lever valve, on the side
– Hand lever valve
– Selector valve, on the side
– Selector valve

Reliable

Durable thanks to tried and tested piston spool and disc seat valves
Robust construction: basic valve made from metal, cover made from plastic

Easy to install

Mounted using mounting holes
Front-panel mounting possible for nearly all valves (not possible for finger lever valve)

Please contact us for more information.
