Huapu DBE1-B Portable Dot Peen Marking Machine

Huapu DBE1-B Portable Dot Peen Marking Machine  Huapu DBE1-B Portable Dot Peen Marking Machine  Huapu DBE1-B Portable Dot Peen Marking Machine

High performance
- Hard alloy marking pin;
- Marking part hardness up to HRC60;
- Strong anti-interference and radiation resistance;
- Adapt to harsh working environment.

Robust and reliability
- Marking head with Liner guide structure, reliable and long service life, great valuefor money;
- Low failure rate, easy maintenance.

Electromagnetic marking technology
- No need computer, no need air supply;
- Deep and stable marking.

Compact structure
- Small and portable;
- Ergonomic handle;
- Light weight (3.2kg~5kg);
- Transport suitcase;
- Marking window: Multiple size available;
- Marking deep: 0.2~0.3 mm (according to the material).

Easy operation
- User friendly interface;
- Easy to learn and operate.

DBE1-B characteristics
Marking head bracket
- V-shaped bracket:
- self-adaption marking distance;
- suitable for pipe shape parts.

Ergonomic handle
- Cast aluminum handle，light and durable

Marking Perfomance
Huapu DBE1-B Portable Dot Peen Marking Machine  Huapu DBE1-B Portable Dot Peen Marking Machine  Huapu DBE1-B Portable Dot Peen Marking Machine
Huapu DBE1-B Portable Dot Peen Marking Machine  Huapu DBE1-B Portable Dot Peen Marking Machine  Huapu DBE1-B Portable Dot Peen Marking Machine

Mechanical spec
DBE1-B520
Marking window: 50x20mm
Marking head dimensions: 273x220x132mm
Marking head weight: 3.2kg
Machine/controller cable length: 3m (15m optional)
Controller dimensions: 296x250x140mm

DBE1-B840
Marking window: 80x40mm
Marking head dimensions: 324x180x225mm
Marking head weight: 3.9kg
Machine/controller cable length: 3m (15m optional)
Controller dimensions: 296x250x140mm

DBE1-B1140
Marking window: 110x40mm
Marking head dimensions:324x210x225mm
Marking head weight: 5kg
Machine/controller cable length: 3m (15m optional)
Controller dimensions: 296x250x140mm

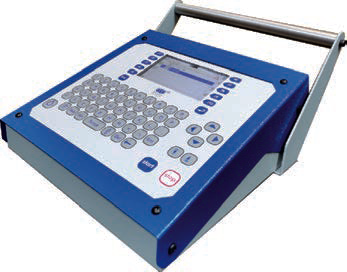

DBE1 controller
Multifunction software;
Provided PC interface;
Color screen;
Small size;
USB port (allow to transfer marking files easily);
Quick and easy edit of marking files;
Marking mode (DataMatrix, circular, alphanumeric, logos…);
Industrial bobble keyboard.


Please contact us for more information.
