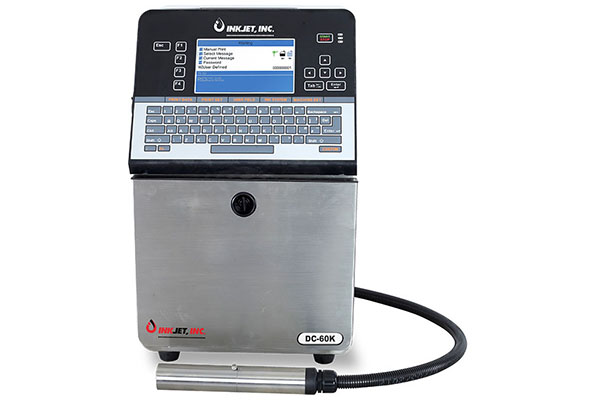

Duracode Continuous Inkjet Printer (CIJ)

CONTINUOUS CODE.
CONTINUOUS UPTIME.

DuraCode is designed to deliver the best quality code, day in and day out, continuously. Our feature-packed CIJ printer, offered in a keyboard and touch screen model, offers cost saving with a single part service and solvent consumption saving system. Add in InkJet, Inc.’s fluids, parts & service and downtime will be the least of your worries!

RELIABILE OPERATION
When you require a printer/coder that will hold its own and do the job you need, the DuraCode CIJ can deliver clear code, continuously. It has a stainless steel design with a simple, high resolution operator interface.

QUALITY PRINTING
The automatic monitoring system allows for quality print consistently. In addition to the quality of the code the printer provides, InkJet, Inc. offers the fluids that are backed by a quality control process that is unmatched in the industry.

POWERFUL & FLEXIBLE

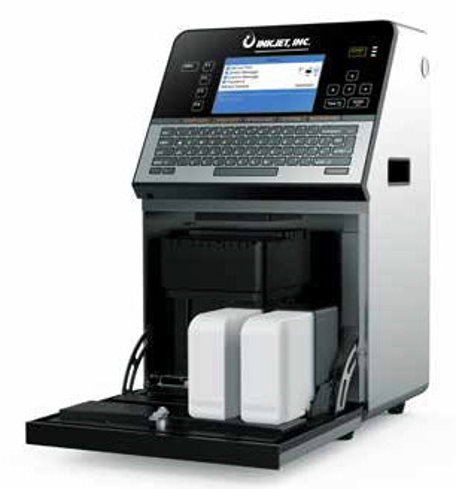

The DuraCode Series of CIJ printers offers print data options through network and local scanners and gives a powerful performance with a low cost of ownership. It has a modular, stainless steel, IP55 industrial structure and the ability to quickly change the filter and fluids keeps your manufacturing line up and running.

Duracode Continuous Inkjet Printer (CIJ)

Specifications

NOZZLE

60 μm

MAXIMUM VERTICAL DROPS

FONT LIBRARY

●

MULTI-LANGUAGE

●

TRAVERSE PRINTING

●

90 DEGREE VERTICAL PRINTING

●

IP55 INDUSTRIAL PROTECTION

●

SPECIAL COUNTER

●

COUNTER REPLACEMENT

●

CLOCK REPLACEMENT

●

ENCODER PORT

●

USB PORT

●

SERIAL PORT

○

NETWORK LAN CONNECTION

○

INK RECOVERY PUMP

●

POSITIVE AIR PUMP

○

SOLVENT FLUSH PUMP

●

MICRO PRINT

●

UMBILLICAL

Length: 9 ft. / 2.7 m

PRINT HEIGHT

1.2-15 mm

MAX PRINTING SPEED

Up to 1050 ft/min / 320 m/min

PRINTING DISTANCE

1 – 3 inches / 25.4 – 76.2 mm

INPUT SYSTEM

Touch Screen or Standard Keyboard / WYSIWYG

PRINT FONT

5×5, 7×5, 9×6, 11×8, 16×11, 24×17, 32×22

OPERATING RANGE

41-113° F / 5-45° C

USER DEFINED FIELD

Bar Code, QR Code, Logos, Clock, Counter, Classes, etc.

POWER

120-240 VDC, 50-60 HZ

ELECTRICAL CONSUMPTION

120-150 W

NET WEIGHT

27 kg / 60 lbs

GROSS WEIGHT WITH COMPLETE PACKAGE

45 kg / 99 lbs

● = STANDARD
○ = OPTIONAL

Please contact us for more information.
