TTP-225 Series (TTP-225, TTP-323)

Overview

TSC is excited to introduce its first series of 2" wide thermal transfer desktop printers. The TTP-225 Series of desktop thermal transfer printers brings TSC quality, innovation, performance, reliability and value to the small footprint 2" wide printer market.

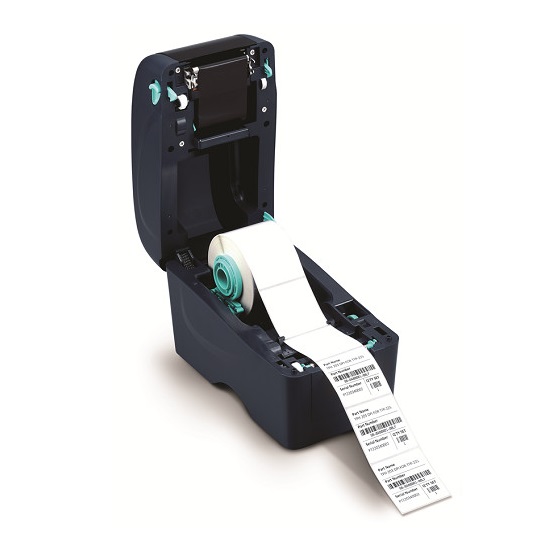

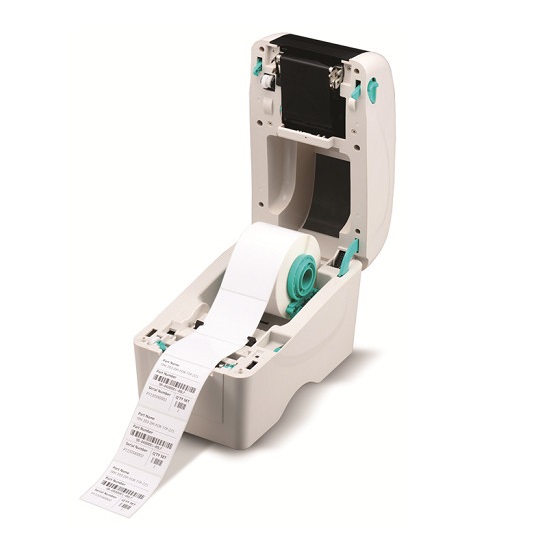

The TTP-225 Series delivers premium performance for most retail, medical and office applications at an affordable price. The TTP-225 features a user friendly clamshell design with a large 5" OD center biased media capacity. Designed with no losable parts, it is the perfect size when you need a space-saving printer for 2" wide labels or tags. Simply open the cover and drop your labels into the printers spring loaded media guide. Top of form sensing by gap, black mark, or notch is standard and completely adjustable from side to side.

Choose either standard 203 dpi or higher resolution 300 dpi solutions. The TTP-225 features 203 dpi resolution and print speeds up to 5 inches per second. The 300 dpi TTP-323 is ideal for 2-D barcodes, fine text and small graphics labeling.

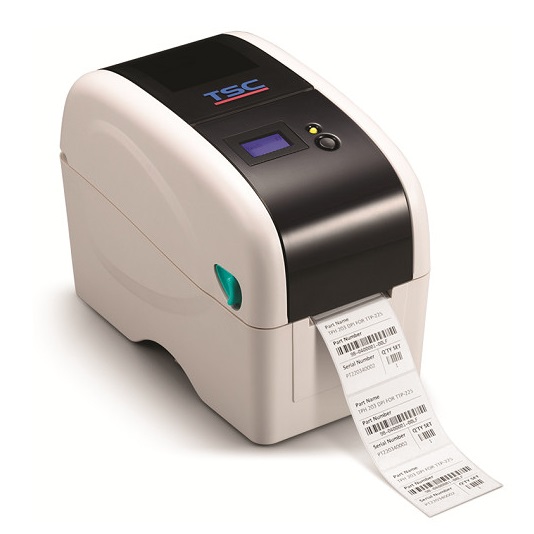

The TTP-225 is one of the first low-cost thermal transfer compact 2" desktop printers to offer an optional LCD display to its customers. The LCD is used to present important information about print job status and setup which brings a new level of ease of use to its customers. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into network systems, cutters, label present sensor, and an optional keyboard for printing labels in stand-alone or down-time situations.

  • Retail Point-of-Sale
  • Oil Change & Auto Service Labeling
  • Pharmacy Prescription Labeling
  • Healthcare Specimen Labeling
  • Healthcare Patient Tracking
  • Shelf Labeling
  • Product Marking
  • Inventory & Asset Management
  • Small Office/Home Office Mailing
  • File-Folder Labeling
  • Wristbands
Key Specification

Model   TTP-225 TTP-323


Product Photos   TSC TTP-225 Series Desktop Thermal Transfer Barcode and Label Printers TSC TTP-225 Series Desktop Thermal Transfer Barcode and Label Printers
Print Specification Resolution 8 dots/mm (203 DPI) 12 dots/mm (300 DPI)
Max. print speed 127 mm (5")/second 76 mm (3")/second
Max. print width 54 mm (2.13") 54 mm (2.13")
Max. print length 2,286 mm (90") 1,016 mm (40")
Printing method Thermal Transfer & Direct Thermal Thermal Transfer & Direct Thermal
LCD/LED LCD/LED 1 LED (3 colors: green, amber & red) 1 LED (3 colors: green, amber & red)
Memory SDRAM 4 MB 4 MB
Flash 8 MB 8 MB
Extension microSD card reader for Flash memory expansion, up to 4 GB microSD card reader for Flash memory expansion, up to 4 GB
Ribbon & Media Capacity Ribbon capacity 90 m long, max. OD 37 mm, 0.5" core (ink coated outside 90 m long, max. OD 37 mm, 0.5" core (ink coated outside
Ribbon width 56 ~ 58 mm (2.20" ~ 2.28") 56 ~ 58 mm (2.20" ~ 2.28")
Media type Continuous, die-cut, black mark, fan-fold, notched, wristband (outside wound) Continuous, die-cut, black mark, fan-fold, notched, wristband (outside wound)
Media width 15 ~ 60 mm (0.59" ~ 2.36") 15 ~ 60 mm (0.59" ~ 2.36")
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 ~ 38 mm (1" ~ 1.5") 25.4 ~ 38 mm (1" ~ 1.5")
Media length 6 ~ 2,286 mm (0.24" ~ 90") 6 ~ 1,016 mm (0.24" ~ 40")
Media roll capacity 127 mm (5") OD 127 mm (5") OD
Interface Standard • PCBA1: USB 2.0, RS-232
• PCBA2: USB 2.0, Ethernet, 10/100 Mbps
• PCBA3: USB 2.0, USB Host, RS-232
• PCBA4: USB 2.0, USB Host, Ethernet, 10/100 Mbps
• PCBA1: USB 2.0, RS-232
• PCBA2: USB 2.0, Ethernet, 10/100 Mbps
• PCBA3: USB 2.0, USB Host, RS-232
• PCBA4: USB 2.0, USB Host, Ethernet, 10/100 Mbps
Options • USB host, for scanner or PC keyboard (factory option)
• Internal Ethernet, 10/100 Mbps (dealer option)
• Bluethooth (user option)
• USB host, for scanner or PC keyboard (factory option)
• Internal Ethernet, 10/100 Mbps (dealer option)
• Bluethooth (user option)
Software Support Software support SAP, Oracle, WHQL 8.1, Windows, Linux, MAC X.10, Mircosoft SQL Server, Bartender, Nice Label SAP, Oracle, WHQL 8.1, Windows, Linux, MAC X.11, Mircosoft SQL Server, Bartender, Nice Label
Physical characteristics Dimension 140 mm (W) x 177 mm (H) x 241 mm (D)
5.51" (W) x 6.97" (H) x 9.49" (D)
140 mm (W) x 177 mm (H) x 241 mm (D)
5.51" (W) x 6.97" (H) x 9.49" (D)
Weight 2.45 kg (5.4 lbs) 2.45 kg (5.4 lbs)



Please contact us for more information.
