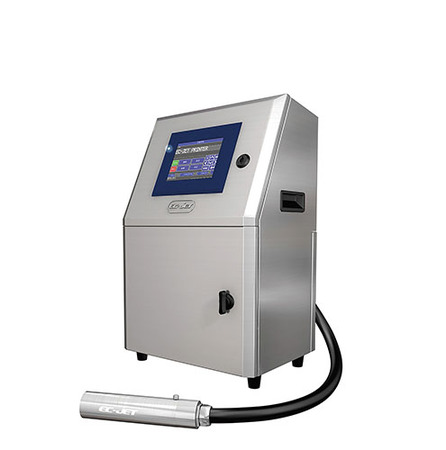

MX1880Pro Continuous Inkjet Printer (CIJ Printer)

High Speed Continuous Inkjet Coding Machine, up to 300m/min maximum.

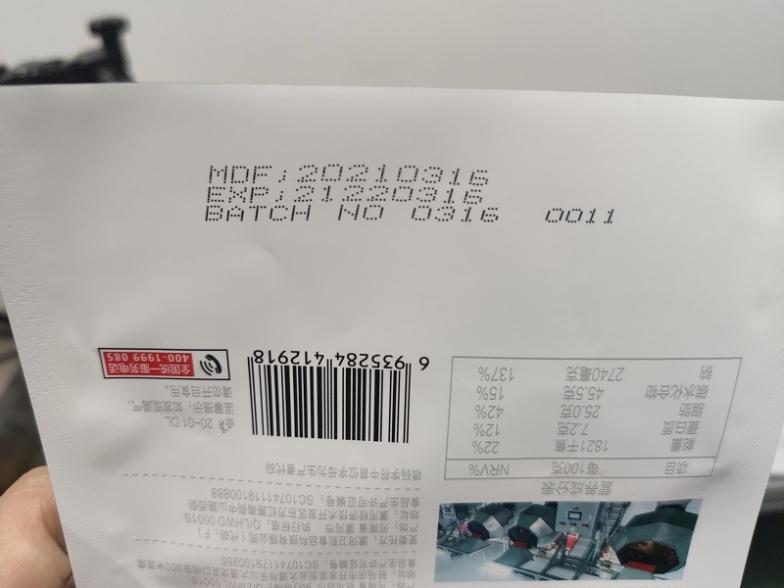

It is suitable for printing MFG date, EXP date, batch number, text and images on various materials.
Low cost of coding.
Printing height 1-15mm, 1-5 lines to choose.
No need training and maintenance.
No nozzle blocking, no need clean nozzle.

The information content of the CIJ- Inkjet printer can be freely edited, continuous on the product surface, non-contact printing.
Spray printing content includes digital, Chinese characters, graphics, English, date, batch number and other information content.
The inkjet printer uses fast-drying ink, with a variety of colors to choose from, excellent adhesion, suitable for a variety of materials, such as: plastic film, paper, metal, ceramics, glass, rubber and other materials.
Easy to install, easy to operate and learn. It can print 40 dot matrix 1-5 lines of high quality information on irregular surface with good factory price.

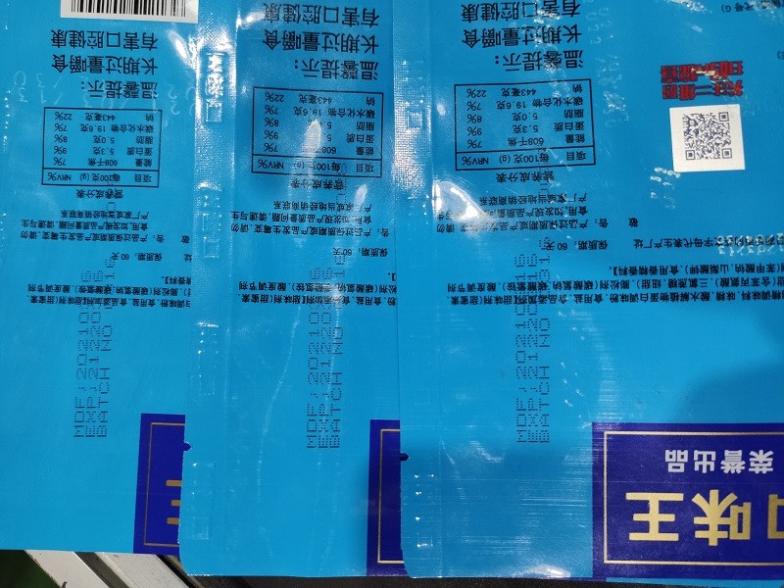

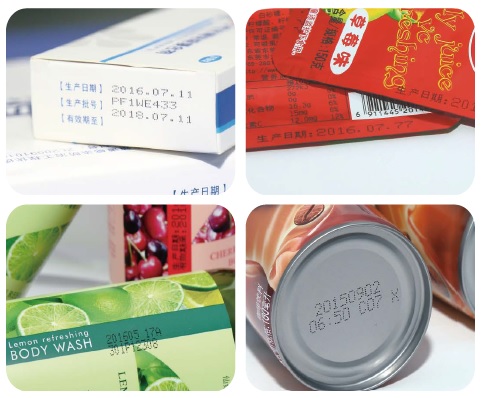

MX1880Pro inkjet printing machine supports print on many different materials: plastic bag, PE PVC bottles, carton boxe, thin cable, steelpipe, tube, metal materials, boards, smooth stone, electronic, automotive parts etc. MX1880Pro inkjet coding system print content: Text, Barcode, QR code, Number, Time, Date, Counter, Pictures, Symbols etc.

Parameter

Attributes of CIJ Coding Machine	Parameter of Meenjet Mx1880PRO CIJ Inkjet Printer
Printing lines	1-5 lines (5x5 Dot Matrix)
Printing Speed	320m/min
Spray Printing Matrix	Number and Letter 5X4 5x7 x9 8X12 12x16 16x16 24x24 32x32
Chinese font	12x12 14x14 16x16 24x24 32x32 40x40 simple song, simple black, and custom graphics within 40 dot matrix
Spray printing speed	2000 characters per second (5x5)
Printing height	1-20mm Adjustable
Text input	Full Spelling Input

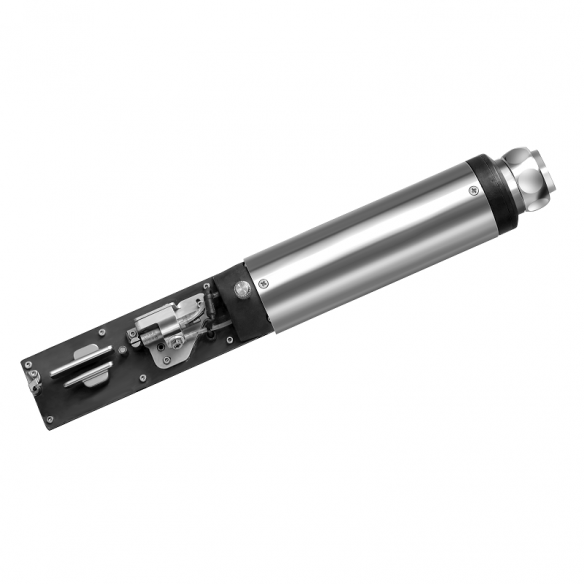

Nozzle Conduit	3m, 4m
Nozzle Material	Ruby
Nozzle aperture	60um
Spray Printing Distance	2-20mm from Product Surface
Viscosity Testing	Negative Pressure Viscosity Testing
Nozzle Cleaning	Independent Automatic Cleaning

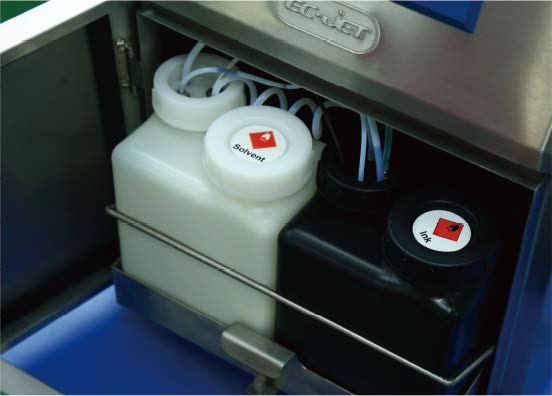

Ink Types	Butanone/ Alcohol/ Mixture
Ink color	black, red, blue, yellow and invisibility
External interface	USB, RS232, photoelectric, synchronizer, alarm lamp
Optional accessories	three-color alarm lamp, synchronous encoder, color label sensor, optical fiber sensor, time relay
Box Material	Stainless Steel 304
Protection Level	0IP55 Protection Level
Cabinet size	345 mm X360 mm X530
Operating temperature	range 5-45
Environmental humidity	range 10-90% (non-condensation)
Operating Voltage	50/60 Hz 220V

MX1880Pro Continuous Inkjet Printer (CIJ Printer)

Please contact us for more information.
