Product Overview

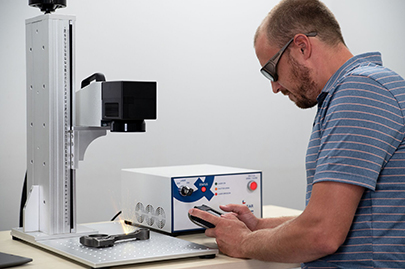

LaserGear QUBE is a Class 4 laser marking system that is ideal for use in an open environment or integrated into production lines. Featuring a 20W MOPA fiber laser, QUBE delivers both strength and speed to accomplish a variety of applications. Mount QUBE to a tool-post for marking applications which require open space and flexibility. Integrate QUBE into automated lines safety enclosures for unattended or turnkey applications. Simply connect a laptop or desktop PC via USB and begin programming in our Minilase Pro SE.
System Features - QUBE20W
Some of the features you can expect to find within our QUBE laser marking systems include:
- Class 4 integration style laser marking system

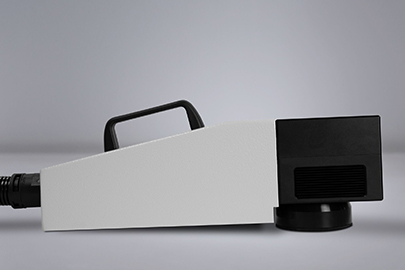

- Compact head design and controls enclosure
- 20W MOPA fiber laser
- I/O for automated system control
Technical Specifications
| System Dimensions / Weight (approx.) | Rack: 13.5”W x 13.5”L x 8”H / 35lbs (mm) 343W x 343 L x 203H / 16kg Head: 4.0”W x 14.0”L x 4.5”H / 10lbs (mm) 102W x 356 L x 114H / 4.5kg |
| Standard Marking Field | 163 Focal Lens 3.93″ x 3.93″ / 100mm x 100mm |
| Lens Upgrade | 254 Focal Lens 6.5″ x 6.5″ / 165mm x 165mm |
| Laser Type | Ytterbium Fiber |
| Wavelength | 1062nm +/- 3nm |
| Wattage | 20W |
| Frequency Range | 1-400kHz |
| Pulse Duration | 200ns |
| Operative Ambient Air Temperature | 0° – 40° C / 32° – 104° F |
| Cooling | Forced Air |
| Input Power Requirements | Power Sensing 110-240VAC 50/60Hz |

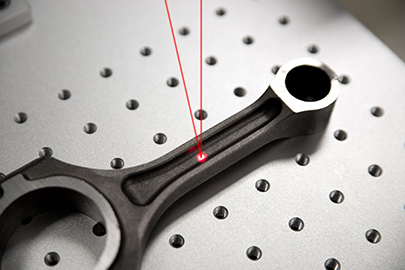

| Aiming Beam | (2) Class IIIa/3R Red Diode |
| PC | Windows 7 or 10 Laptop or Desktop PC |
| PC Connection | USB |
| Machine Ports | Diagnostic, Option Pendant |
| Warranty | 18 Month Comprehensive, Unlimited Hours |
| Documentation (Provided in Digital Format via USB Drive) | System & Software Manuals Laser Settings Guide / Safety Manual |
Options
In addition to the Minilase Pro SE software, our products can be optimized with many types of accessories, including:
- Rotary
- Pendant
- Tool Post
- Fume Extraction
Downloads
Download LaserGear QUBE20W Brochure
Download LaserGear QUBE20W Brochure
Please contact us for more information.
