SIC Marking E-TOUCH Portable Dot Peen Marking Machine
Touch screen
Compact and light
Removable front panels
Description

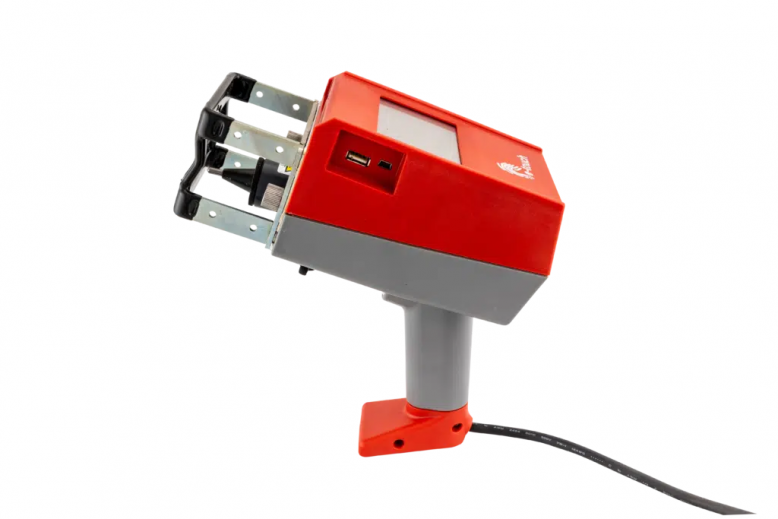

The E-TOUCH is a PORTABLE MARKING MACHINE WITH A TOUCH SCREEN. It is robust, compact and light. It has 3 CONTACT FACES that are INTERCHANGEABLE without tools, that allow it to be set up in various marking configurations (piece shapes and marking conditions).
The E-TOUCH weighs LESS THAN 2 kg and is very compact, measuring 220 x 210 x 125 mm. It is the LIGHTEST AND MOST COMPACT PORTABLE DOT PEEN MARKING GUN ON THE MARKET.
Nevertheless, its internal metal structure makes it very robust.In addition, an ergonomic handle and excellent mass balancing make it VERY EASY TO HANDLE.

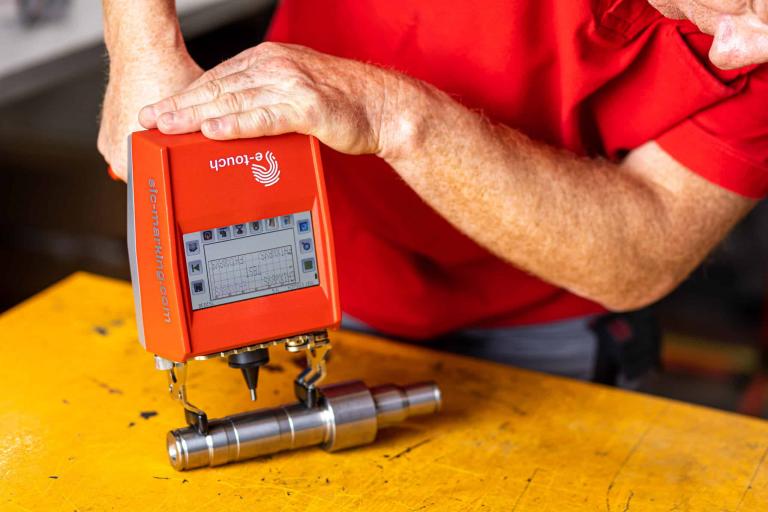

The shape of the E-TOUCH allows programming with both hands.The TOUCH SCREEN is usable with or without gloves, which makes it particularly suitable for use in an industrial environment.Its full-size viewing window allows the MARKING TO BE PREVIEWED exactly as it will be applied on the piece.
The E-TOUCH portable marking machine uses dot peen technology to mark industrial parts. The marking may be alphanumeric text, a logo, a 2D Datamatrix code or a QR Code.
The dot peen technology provides RELIABLE AND PERMANENT MARKING directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.
Mechanical specifications
| Marking window | 60 x 25 mm |
| Dimensions | 210 x 125 x 220 mm |
| Weight | 1.9 kg |
| Power supply cable | 5 m |
| Stylus | Tungsten carbide |
Electronic specifications
| Colour HD screen | 95 x 55 mm |
| Keyboard | Touch |
| Power | 100W |
| Power supply | 18 V / 3 A |
| Inputs/Outputs | Coax. socket |
| PC software | Creation, backup and transfer of logo files |
Control software
| Marking file capacity | Up to 20,000 files |
| Memory | 100 MB |
| Variable | Alphanumeric, serial numbering, date/time tags, barcode |
| Logos and files | Loading from USB memory stick |
| Fonts | Courier, 4×6, OCR-Bold, OCRA and OCR |
| Marking | Linear, radial, angular, DataMatrix, logo |
| Rate | Up to 2.5 characters per second |
| Font size | Minimum 1 mm |
| Impact force | 1 – 9 |
| Depth | Up to 0.3 mm |
| Resolution between dots | 0.05 mm |
| Maximum stylus stroke | 9 mm |
| COMMUNICATION | |
| Ports | USB and Coax. |
Options
1D/2D BLUETOOTH BARCODE READER
The 1D/2D barcode reader is used to select marking files and also to enter variable data.
There is a choice of two readers; one only reads 1D codes and the other is multi-function for 1D and 2D codes, capable of reading printing on paper or labels.
The code’s content is entered in the marking file as a variable.The text read can be marked in full or divided into several parts.
This option ensures a high level of security.No risk of error due to manual entry.The data read can be displayed on the SIC controller screen.
The various codes read are Codabar, Code 25 industrial, Code 25 interlaced, Code matrix 25, Code 25 standard, Code 39, Code 93, Code 128, Code EAN-8, Code EAN-13, Code UPC-E, Code MSI and Code 11.
The benefits:
- The reader and machine are connected by a radio link and therefore no wiring is required.
- The reader is fully compatible with the entire E1 range.
- The reader is ideal for reading labels, printing on paper, etc.
ATTACHMENT RING + BALANCER
The balancer allows the marking head to be perfectly balanced in all positions.Its stroke is 2000 mm and its capacity is 3 to 5 kg.
The benefits:
- The tool is designed for industrial use. Its heavy duty plastic case is impact resistant and provides a high degree of protection with a long life cycle.
- The shackle also makes it easily removable.
- It facilitates the operator’s work.

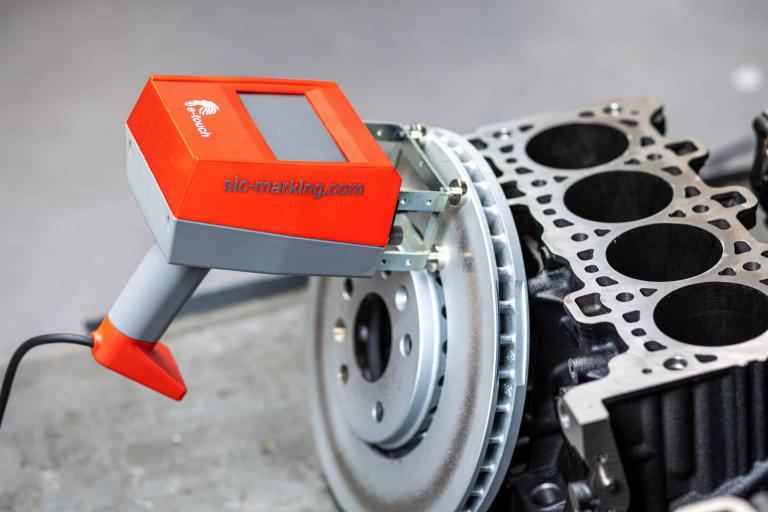

SUPPLEMENTARY FRONT PANELS (3 TYPES TO CHOICE, DEPENDING ON APPLICATION)
There are three front panels:
- The front panel for flat marking (standard)
- The magnetised front panel
- The small adjustable front panel
The benefit:
The supplementary front panels enhance product compatibility, depending on the application.
Please contact us for more information.
