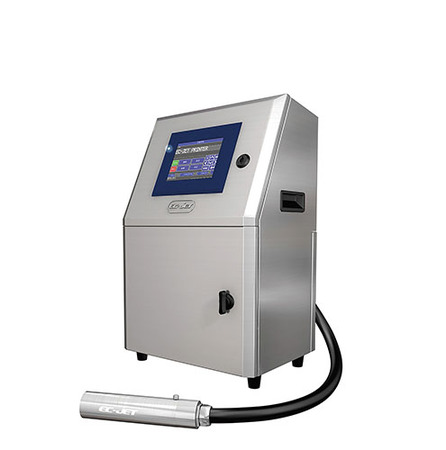

MX1880Pro Continuous Inkjet Printer (CIJ Printer)

MX1880Pro Continuous Inkjet Printer (CIJ Printer) MX1880Pro Continuous Inkjet Printer (CIJ Printer) MX1880Pro Continuous Inkjet Printer (CIJ Printer)

High Speed Continuous Inkjet Coding Machine, up to 300m/min maximum.

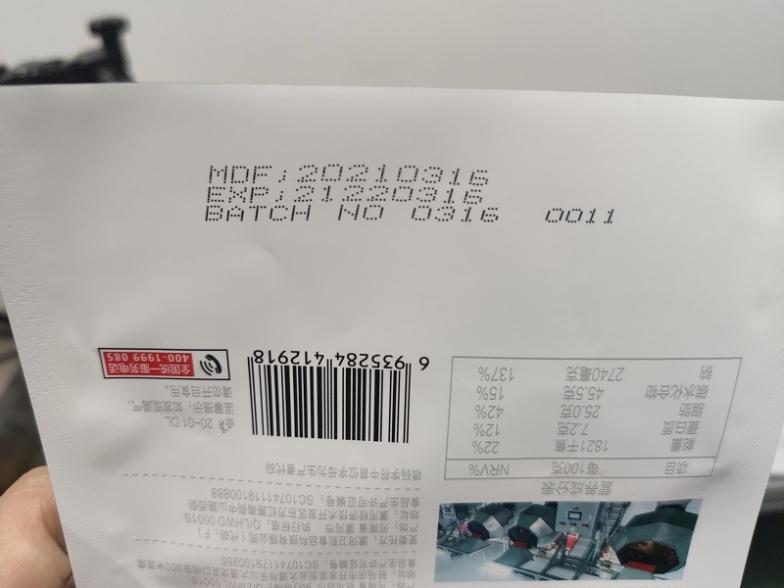

It is suitable for printing MFG date, EXP date, batch number, text and images on various materials.
Low cost of coding.
Printing height 1-15mm, 1-5 lines to choose.
No need training and maintenance.
No nozzle blocking, no need clean nozzle.

The information content of the CIJ- Inkjet printer can be freely edited, continuous on the product surface, non-contact printing.
Spray printing content includes digital, Chinese characters, graphics, English, date, batch number and other information content.
The inkjet printer uses fast-drying ink, with a variety of colors to choose from, excellent adhesion, suitable for a variety of materials, such as: plastic film, paper, metal, ceramics, glass, rubber and other materials.
Easy to install, easy to operate and learn. It can print 40 dot matrix 1-5 lines of high quality information on irregular surface with good factory price.

MX1880Pro inkjet printing machine supports print on many different materials: plastic bag, PE PVC bottles, carton boxe, thin cable, steelpipe, tube, metal materials, boards, smooth stone, electronic, automotive parts etc. MX1880Pro inkjet coding system print content: Text, Barcode, QR code, Number, Time, Date, Counter, Pictures, Symbols etc.

Parameter

Attributes of CIJ Coding Machine Parameter of Meenjet Mx1880PRO CIJ Inkjet Printer
Printing   lines 1-5 lines (5x5 Dot Matrix)
Printing   Speed 320m/min
Spray Printing Matrix Number and Letter 5X4 5x7 x9  8X12   12x16 16x16  24x24 32x32
Chinese   font 12x12 14x14 16x16 24x24 32x32 40x40 simple song, simple black, and custom graphics   within 40 dot matrix
Spray   printing speed 2000 characters per second (5x5)
Printing   height 1-20mm Adjustable
Text   input Full  Spelling Input

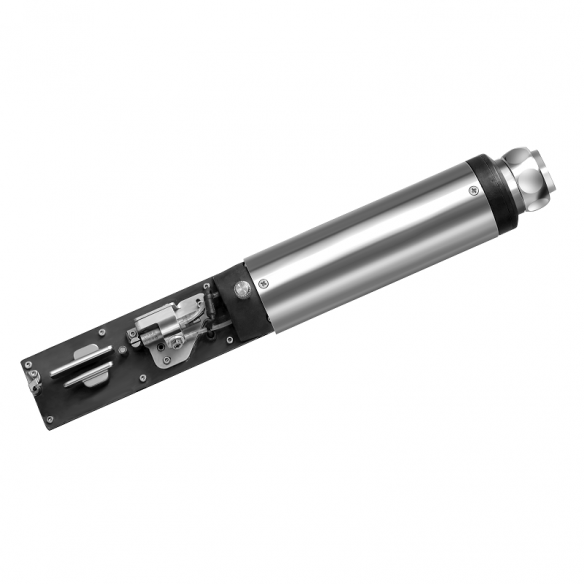

Nozzle   Conduit 3m,  4m
Nozzle   Material Ruby
Nozzle   aperture 60um
Spray   Printing Distance 2-20mm  from Product Surface
Viscosity   Testing Negative Pressure Viscosity Testing
Nozzle   Cleaning Independent  Automatic Cleaning

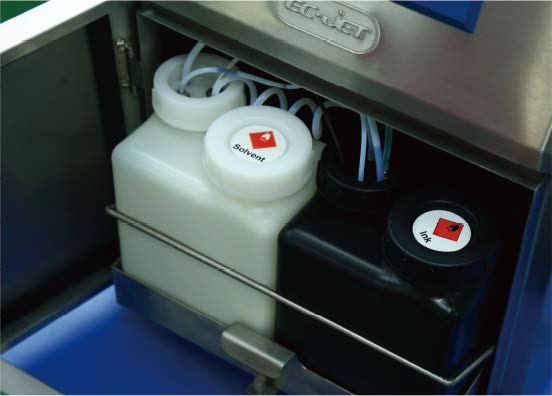

Ink   Types Butanone/  Alcohol/ Mixture
Ink   color black, red, blue, yellow and invisibility
External   interface USB, RS232, photoelectric, synchronizer, alarm lamp
Optional   accessories three-color alarm lamp, synchronous encoder, color label sensor, optical fiber sensor,   time relay
Box   Material Stainless Steel 304
Protection   Level 0IP55 Protection Level
Cabinet   size 345 mm X360 mm X530
Operating   temperature range 5-45
Environmental   humidity range  10-90% (non-condensation)
Operating   Voltage 50/60  Hz 220V


MX1880Pro Continuous Inkjet Printer (CIJ Printer) MX1880Pro Continuous Inkjet Printer (CIJ Printer)


Please contact us for more information.
